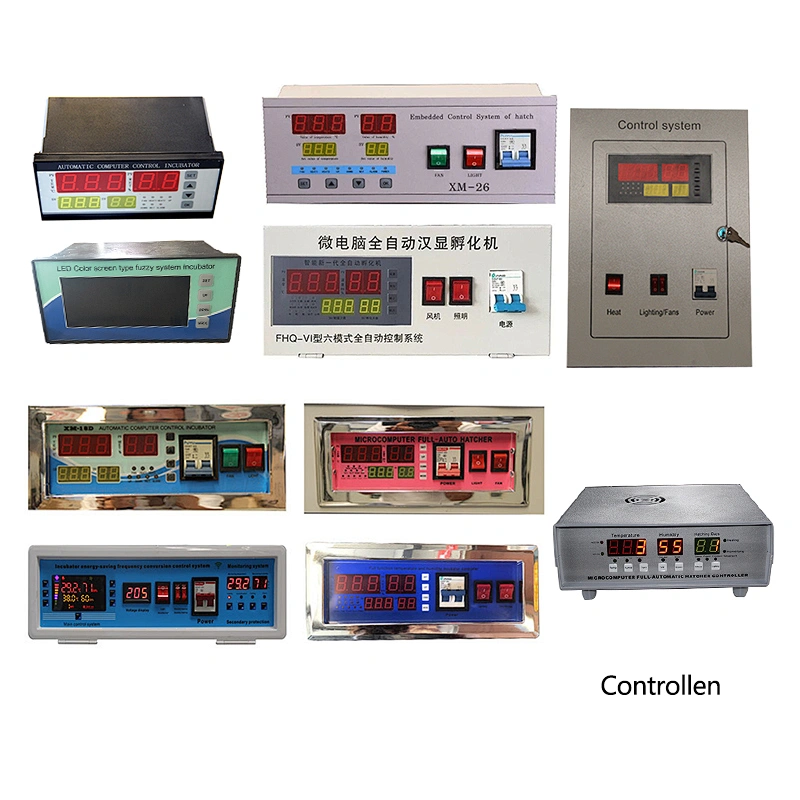

------ Introduction

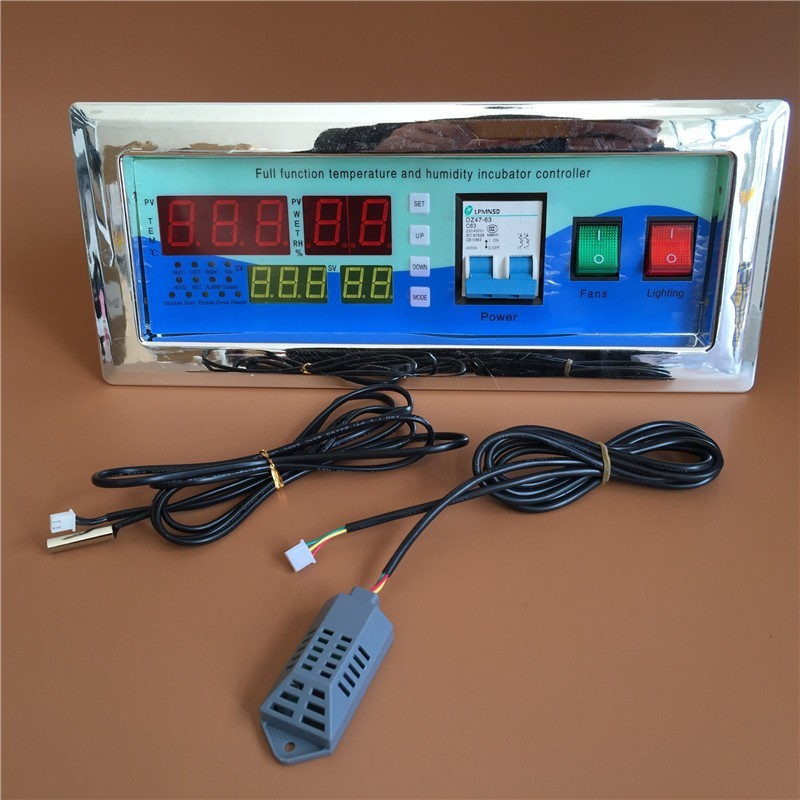

The XM-18E automatic multifunctional hatch controller developed and produced by our Company, with the world popular

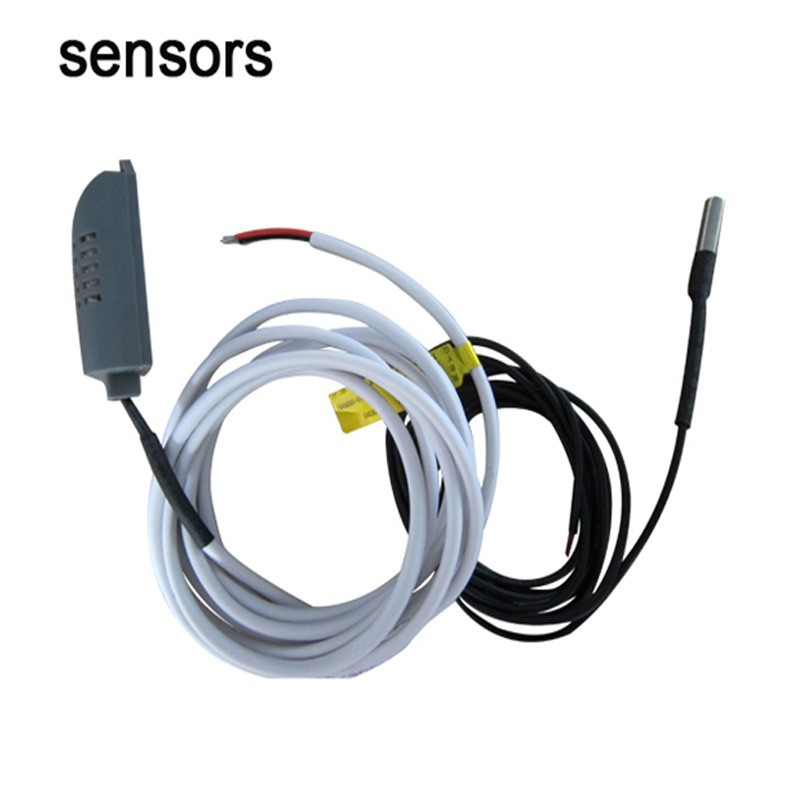

microcomputer control system (the latest micro-electronic technology and newly advanced parts and units) and imported digital temperature sensor as well
as French humicap humidity sensor, is miniaturized, intelligent and in high measurement precision. The controller
works stably and reliably, being effort saving, labor saving and easy to operate, and is an ideal hatching
equipment for hatch of domestic and rare birds.
------Main technical indices
1. Temperature display range: 0~99c
2. Temperature measurement precision: ±0.1c
3. Humidity display range: 0—99%RH
4. Humidity control precision: ±3%RH
5.Output channels: 7-channel (over temperature, temperature control, low temperature, turn eggs left, turn eggs right, humidity
control and alarm).
6. Output current: 10A for temperature control and low temperature and 1A for others
7. Number of egg turning: max. 999
8. Egg turning cycle: adjustable between 0 ~999 minutes (90 minutes at factory)
9. Time of egg turning: adjustable between 0 ~999 seconds (180 seconds at factory)
10. Ventilation period: 0 ~999 minutes (adjustable, 0 hour at factory, without ventilation)
11. Ventilation time: 0 ~999 seconds (adjustable, 30 seconds at factory)
12. Length of measurement line: About 2 meters
------Working conditions:
1. Working voltage: AC 160V~240V,50HZ
2. Relative humidity: below 85%
3. Ambient temperature: -10c~60c
